New PAJOT type C pneumatic impact hammers

The cylindrical design of these impact hammers not only gives them great strength, it also makes them easier to maintain and use. The power delivery of these pneumatic hammers has also been improved by the new design. We are currently offering 2 new models: 1000 kg and 4200 kg.

Advantages of the new pile driversScreenshot 2015-04-17 at 11.20.59

  • Eliminates the risk of breaking the pullers and retaining clamps
  • Reduced labor and difficulty during installation
  • Reduced number of parts / consumables
  • Easier and faster breakdown diagnostics
  • Stronger assembly needing less daily maintenance
  • Simplified guide system that can easily be adapted to fit all profile types (tube, H, single or pairs of sheet piles, etc.)
  • Reduced manufacture lead times
Types and approximate weights1000 kg4200 kg5200 kg
Download PDF fileMAP 1000C data sheetMAP 4200C data sheetMAP 4200C data sheet
Characteristics of the S.G.D.G. patented Automatic Impact Hammers used in pile driving.Approx. No. of blows per minute (1)250140120
Approx compressed air flow m3./min. (1)7 à 927 à 3330 à 35
Power in KGM/BLOW (@ 7 bar) (1)45536005200
Inner diameter of intake pipe (1)40 mm50 mm50 mm
Approximate outer dimensions (1)1689x465x465 mm3368x650x650 mm3622x685x685 mm
Pile driving work suitable for PAJOT Impact HammersMetal Sheet Piles (2)Width300 to 400 mmPairPair
Pile height6 to 8 m20 m30 m
Square or round wooden piles (2)Width100 to 440 mm800 à 1220 mm800 à 1220 mm
Pile height4 to 8 m20 à 15 m25 à 20 m
Reinforced concrete piles (2)Width200x200 mm400x400 mm400x400 mm
Pile height4 to 6 m20 m25 m
1- The figures below have been calculated on the basis of a motor fluid pressure of 5.6 kg of pressure and are provided for information only
2- In soil with a medium consistency

In pictures

1000C dimensions
4200C dimensions
1000C on H pile
4200C in Larmor Baden
4200C on tube in Lamor Baden
4200C with sheetpile guide on GU8N in pair
4200C on combiwall

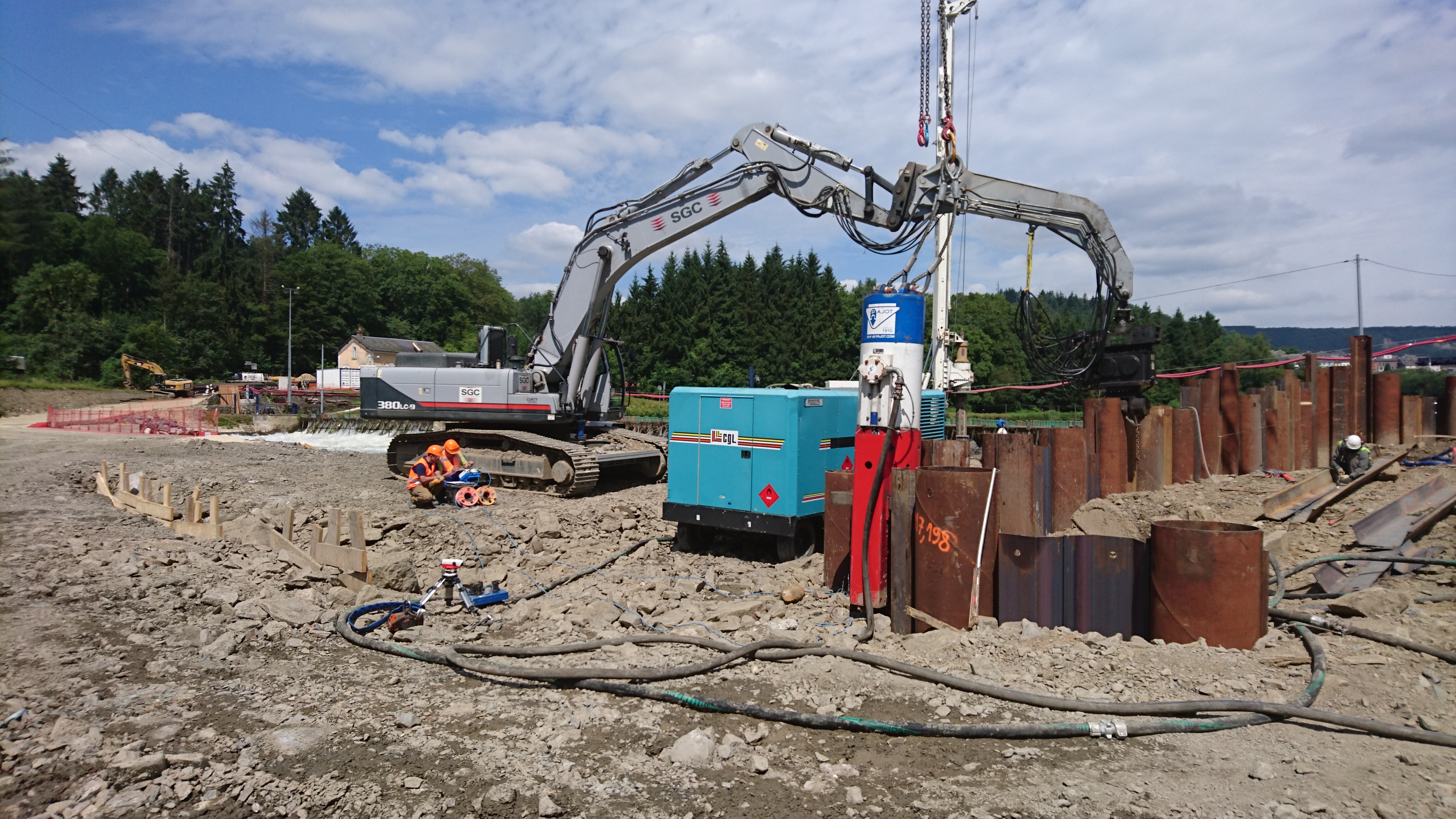

First jobsite for the 5200C
