Movax high frequency side grip vibrators

Vibration frequency 2000 to 4000 RPM. The side grip technology allows sheet piles, tubes and wooden piles to be handled and installed without height being an issue.

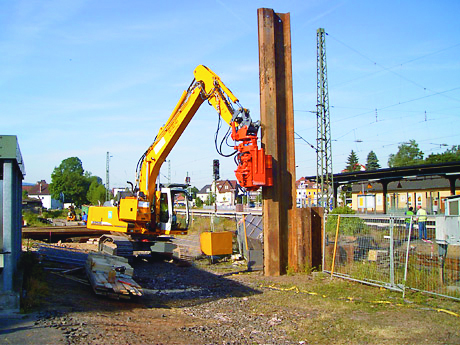

This side grip rig allows all sheet pile modules to be installed without height being an issue (please contact us about cold formed sheet piles) up to a maximum weight of 1400 kg. The rig also allows tubes (max 609mm), H profiles (mini HEB 240) and wooden piles to be installed.

 SPH80 vibrator characteristics

excavator-mounted vibrator

Eccentric moments. ……………………..9 kg/m (Make sure to amend the doc)

Frequency  ………………………………………4,000 and 2,000 RPM

Amplitude ………………………………………..max  8 mm

Static pull. ………………………………290 kN

Hydraulic power  ……………………..112 kW

Centrifugal force  ………………………………800 kN

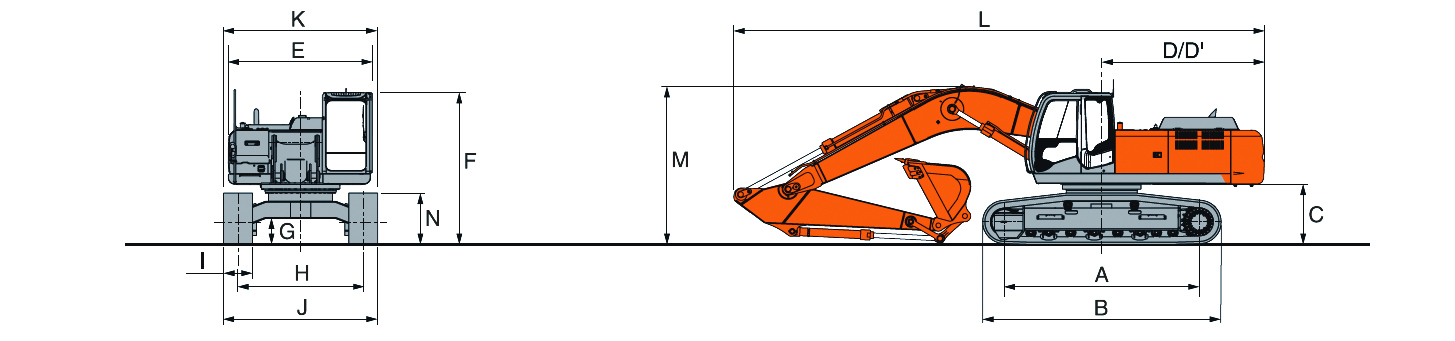

Excavator characteristics ZX350

Power  ………………………………………184.00 kW

Weight  ……………………………………………32.80 t

Length (L). …………………………………..10,97 m

Width (l)  ………………………………………3.19 m

Height (H)  …………………………………….3.14 m

Emergency stop mechanismHigh frequency side grip vibrator

Ground clearance (G)  ………………………………50 cm

Rear turning radius (R). …….3.32 m

Ground contact length (E). ………….4.05 m

Width of standard skids (C). ………..600 mm

Total ground contact surface area. …………4.86 m2
